Wheels Manufacturing Thin Flange Bottom Bracket Socket

Product Description

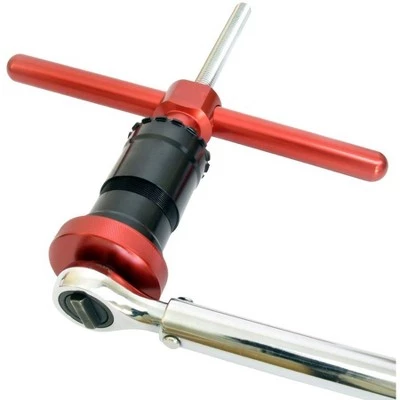

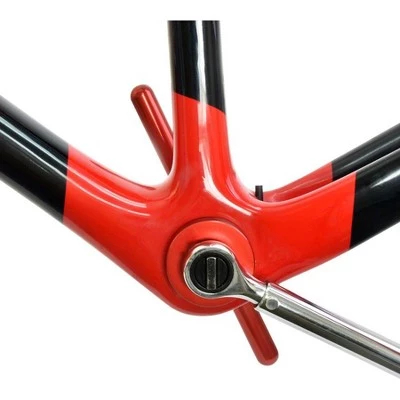

Thin Flange Bottom Bracket Socket Designed to create a tight grip on thin flange bottom bracket to avoid slipping while torquing cups into bike frames. This single-sided socket is used for installing and removing 48.5mm, 16-notch bottom bracket cups. The socket has a machined 3/8″ drive, which can be used to allow 3/8″ drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red Compatible with all Wheels Manufacturing (Some FSA MegaEVO) bottom brackets that have the following spline patterns: 48.5mm, 16-notch, 1/2 UNC threaded Press Rod.

Product Specifications

• Dimensions (Overall): 5.0 inches (W) x 9.5 inches (D)
• Weight: .53 pounds
• Model #: BP0018
• Material: Aluminum
• Warranty: Multiple Warranties and/or Time Frames Apply. To obtain a copy of the manufacturer’s or supplier’s warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869

Product Highlights

• Compatible with all Wheels Manufacturing (Some FSA MegaEVO) bottom brackets that have the following spline patterns: 48.5mm, 16-notch, 1/2 UNC threaded Press Rod
• MPN: BP0018, UPC: 811079027221
